Prepare the 3D mesh

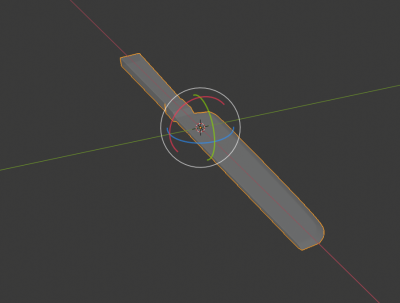

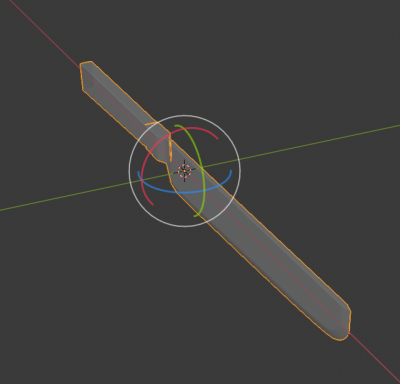

There are a few things to watch out for when adding a 3d mesh to the bullet world. In order to take into account scaling, rotation and file type, it is recommended to first open the object in Blender or another suitable software. Now look at the rotation and consider the Right-Handed 3D Coordinate Frame we are working in. The X-axis is mostly the long side and Z-axis goes up. Just rotate the object to your liking.

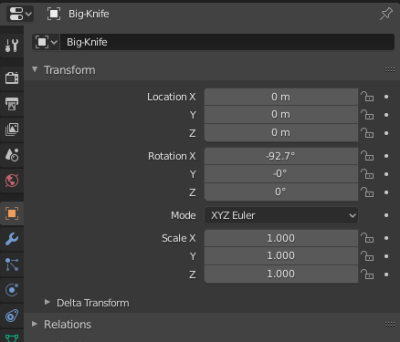

After the rotation is done check the scaling factor of the object. You will need to hit the scaling factor on 1.0 otherwise the object is weirdly big or small in the bullet world. To apply your changes on the object hit ctrl+A and click on apply rotation and scaling transform. Now save the object as an stl.

Add the mesh to CRAM

Export as stl and save it either in your demo resource folder or: ~/YOUR_CRAM_WS/src/cram/cram_3d_world/cram_bullet_reasoning/resource/

To add some coloring on the object one must declare it here: ~/cram_3d_world/cram_bullet_reasoning_utilities/src/objects-database.lisp:

;; Colors for different object types the same for all scenarios.
(<- (%scenario-object-color :big-knife    (0 1 1 1)))

Add your object here, so the system can use the correct stl file for the keyword of your will. In this example it is big-knife. The keyword is important since it is used as a reference within the system: ./cram_3d_world/cram_bullet_reasoning/src/items.lisp:

(defparameter *mesh-files*
  '(
   ....
   (:big-knife "package://cram_bullet_reasoning/resource/big-knife.stl" nil)
   ....


Add your object here for the costmap metadata: ./cram_3d_world/cram_btr_spatial_relations_costmap/src/knowledge.lisp:113:

(<- (object-type-costmap-threshold :big-knife 0.8d0)) ; 0.99d0))

Add your object here for the abstract item-shape: world/cram_btr_spatial_relations_costmap/src/knowledge.lisp:052:

(<- (%item-type-shape :big-knife :rectangle))

Add your object here for the padding size: ./cram_3d_world/cram_btr_spatial_relations_costmap/src/knowledge.lisp:087:

(<- (object-type-padding-size :big-knife 0.005d0))

How to use the mesh

Now you are able to spawn your object by:

(btr-utils:spawn-object 'big-knife-1 :big-knife
                               :pose (cl-transforms:make-pose
                                      (cl-tf:make-3d-vector 1.5 0.0 1.3)
                                      (cl-tf:make-identity-rotation)))
