Semantic environment map in CRAM

Description: This tutorial demonstrates how to use the semantic environment map published by Knowrob within CRAM. Such map has semantically annotated objects of robot's environment, mostly the furniture in indoor scenarios or landmarks outdoors. This tutorial shows how to load the map, how to query for specific parts thereof and how to build and resolve location designators using the semantic map.

Prerequisites: To be able to follow this tutorial you need the following packages in your ROS workspace, compiled without errors:

• KnowRob (the core): https://github.com/knowrob/knowrob.git, this contains the rosprolog and json_prolog packages, which allow for sending Prolog queries to a knowledge base, where the semantic map is stored, over ROS in JSON format (make sure you have rosjava installed, either from source or the ROS Debian package)
• A sample semantic environment map in OWL format: https://github.com/code-iai/iai_maps.git, this contains the map of the kitchen lab of Institute for AI at Uni Bremen
• Core packages of CRAM: https://github.com/cram2/{roslisp_common,cram_3rdparty,cram_core,cram_plans}.git, where {} syntax corresponds to similar syntax in a Linux shell
• Lisp implementation of JSON Prolog protocol: https://github.com/cram2/cram_json_prolog.git
• Semantic environment map functionality for CRAM: https://github.com/cram2/cram_semantic_maps.git

If you installed CRAM using the official installation instructions you should have everything already. Otherwise, clone the listed repos, install the missing system dependencies with rosdep install and catkin_make your workspace.

In a fresh terminal:

$ roslaunch iai_maps iai_maps.launch

In a separate terminal:

$ rosrun rviz rviz

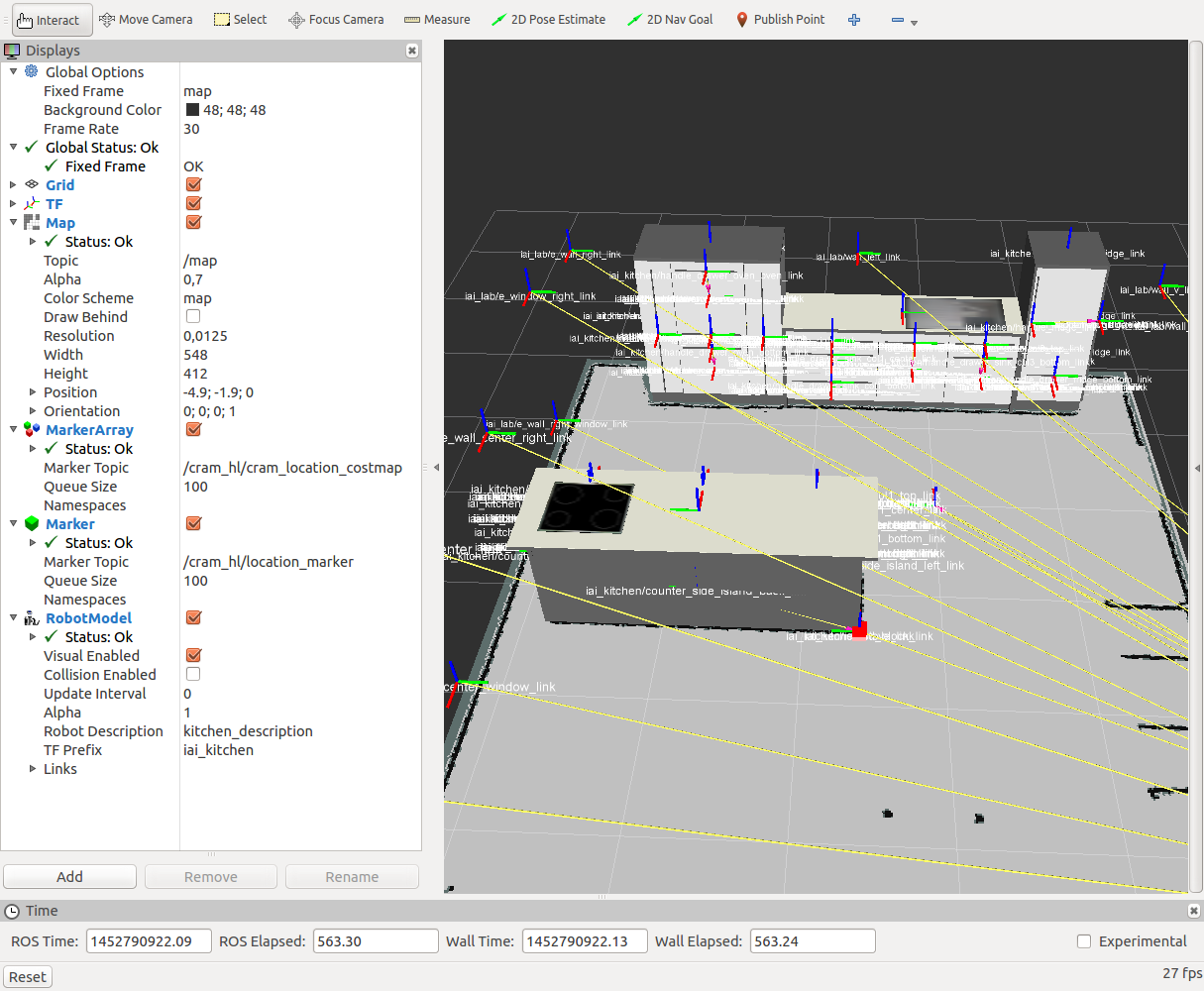

The recommended RViz setup is shown below:

Pay attention especially at the tf_prefix of the RobotModel.

Depending on the version of your map you might also have an additional table there but it really doesn't matter.

Fire up your REPL! (If you don't know how, check the Get ready for development part of the installation guide, you will need the roslisp_repl ROS package installed ($ sudo apt-get install ros-DISTRO-roslisp-repl).

We will be working with the cram_semantic_map_costmap package.

First, let's load the ASDF system:

CL-USER> ,
r-l-s RET
cram_semantic_map_costmap RET RET

You should get the “Compilation finished. (No warnings)” message in the Emacs minibuffer.

Now let's change the namespace:

CL-USER> ,
!p RET
sem-map-costmap RET
SEMANTIC-MAP-COSTMAP>

To use semantic maps from KnowRob in CRAM we first need to set our *fixed-frame*, configure the location costmap and start a new ROS node:

SEMANTIC-MAP-COSTMAP> (setf cram-tf:*fixed-frame* "map")
SEMANTIC-MAP-COSTMAP>
(prolog:def-fact-group costmap-metadata ()
  (<- (location-costmap:costmap-size 12 12))
  (<- (location-costmap:costmap-origin -6 -6))
  (<- (location-costmap:costmap-resolution 0.05))

  (<- (location-costmap:costmap-padding 0.2))
  (<- (location-costmap:costmap-manipulation-padding 0.2))
  (<- (location-costmap:costmap-in-reach-distance 0.9))
  (<- (location-costmap:costmap-reach-minimal-distance 0.1)))
SEMANTIC-MAP-COSTMAP> (roslisp-utilities:startup-ros)

Let's ask KnowRob for the semantic map (it might take a while):

SEMANTIC-MAP-COSTMAP> (cram-semantic-map:get-semantic-map)
#<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP {1005F1CDD3}>

If you right-click on the result object and click Inspect, you can see how semantic maps are stored in CRAM.

There is a hash table stored in the parts slot, which maps name strings to semantic-map-geom-s, i.e. a hash table of the constituent parts of the map.

Here are a bunch of semantic-map-geom-s from the example semantic map:

"drawer_fridge_lower" = #<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {1005EB9363}>
"kitchen_island" = #<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {1005495AD3}>
"kitchen_island_counter_top" = #<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {100548C003}>
"kitchen_sink_block" = #<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {1004C71763}>
"kitchen_sink_block_counter_top" = #<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {1004C4F603}>

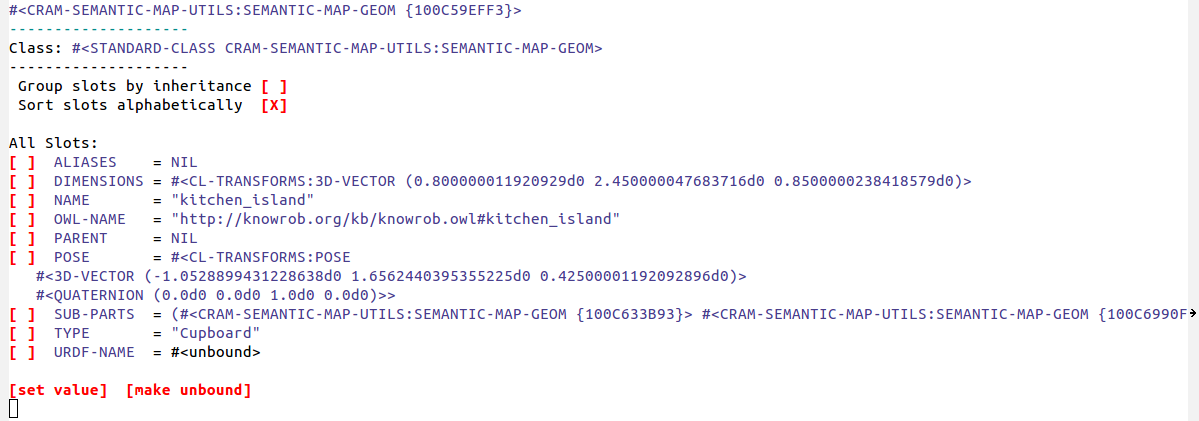

If you inspect a semantic-map-geom you can see the slots of that object, e.g. the “kitchen_island” looks like this:

Most of the classes and utility functions are defined in the cram_semantic_map_utils package, mostly in the semantic-map.lisp file: to get a list of all the parts use semantic-map-parts, for a specific part use semantic-map-part, you can get the pose and dimensions of the part using pose and dimensions functions, if your semantic map contains joints there are functions to access them as well, etc., see the examples below:

SEMANTIC-MAP-COSTMAP> (cram-semantic-map-utils:semantic-map-parts (get-semantic-map))
SEMANTIC-MAP-COSTMAP> (cram-semantic-map-utils:semantic-map-part (get-semantic-map) "kitchen_island")
#<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {1005495AD3}>
SEMANTIC-MAP-COSTMAP> (cram-semantic-map-utils:pose *)
#<CL-TRANSFORMS:POSE
   #<3D-VECTOR (-1.0528899431228638d0 1.6562440395355225d0 0.42500001192092896d0)>
   #<QUATERNION (0.0d0 0.0d0 1.0d0 0.0d0)>>
SEMANTIC-MAP-COSTMAP> (cram-semantic-map-utils:dimensions **)
#<CL-TRANSFORMS:3D-VECTOR (0.800000011920929d0 2.450000047683716d0 0.8500000238418579d0)>

Now let's create a symbolic object description to correspond to a part of the semantic map. We cannot resolve object designators using the reference function currently, as the object designator resolving mechanism is a big flimsy right now - only perception can resolve object designators - so we will use an explicit function designator→semantic-map-objects to do that. Note, that you can have a location designator with the same property and it will work just as well:

SEMANTIC-MAP-COSTMAP>
(cram-semantic-map-designators:designator->semantic-map-objects
 (cram-designators:make-designator :object '((:name "kitchen_sink_block"))))
(#<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {100FB08C23}>)
SEMANTIC-MAP-COSTMAP>
(cram-semantic-map-designators:designator->semantic-map-objects
 (cram-designators:make-designator :location '((:name "kitchen_island"))))
(#<CRAM-SEMANTIC-MAP-UTILS:SEMANTIC-MAP-GEOM {100FE7E4A3}>)

We can also ask for a location of an semantic map part:

SEMANTIC-MAP-COSTMAP> (make-designator :location `((:of
                                                    ,(make-designator :object '((:name "kitchen_island"))))))
#<LOCATION-DESIGNATOR ((:OF
                        #<OBJECT-DESIGNATOR ((:NAME "kitchen_island"))
                          {100E276F63}>)) {100E37ABA3}>

SEMANTIC-MAP-COSTMAP> (reference *)
#<CL-TRANSFORMS-STAMPED:POSE-STAMPED
   FRAME-ID: "map", STAMP: 0.0
   #<3D-VECTOR (-1.0528899431228638d0 1.6562440395355225d0 0.42500001192092896d0)>
   #<QUATERNION (0.0d0 0.0d0 1.0d0 0.0d0)>>

A location description can be ambiguous, e.g., if we would like to have a location of an object of a certain semantic map part type:

SEMANTIC-MAP-COSTMAP>
(let* ((object-of-type-cupboard (make-designator :object '((:type "Cupboard"))))
       (location-of-cupboard (make-designator :location `((:of ,object-of-type-cupboard)))))
  (format t "one solution: ~a~%" (reference location-of-cupboard))
  (format t "another solution: ~a~%" (reference (next-solution location-of-cupboard))))
one solution: #<POSE-STAMPED
   FRAME-ID: "map", STAMP: 0.0
   #<3D-VECTOR (-1.0528899431228638d0 -0.44999998807907104d0 0.36000001430511475d0)>
   #<QUATERNION (0.0d0 0.0d0 1.0d0 0.0d0)>>
another solution: #<POSE-STAMPED
   FRAME-ID: "map", STAMP: 0.0
   #<3D-VECTOR (1.5159399509429932d0 0.30313000082969666d0 0.42500001192092896d0)>
   #<QUATERNION (0.0d0 0.0d0 0.0d0 1.0d0)>>

There are multiple objects of type cupboard, so we get multiple solutions.

In the example semantic map :type can be “Cupboard”, “Drawer”, “Refrigerator”, etc., see the semantic map object for more detail.

Now, let's use the location costmap mechanism to ground locations on or in objects:

SEMANTIC-MAP-COSTMAP> (reference (make-designator :location '((:in "Refrigerator"))))
#<CL-TRANSFORMS-STAMPED:POSE-STAMPED
   FRAME-ID: "map", STAMP: 0.0
   #<3D-VECTOR (1.3000001907348633d0 -0.9499998092651367d0 0.53999999538064d0)>
   #<QUATERNION (0.0d0 0.0d0 0.0d0 1.0d0)>>

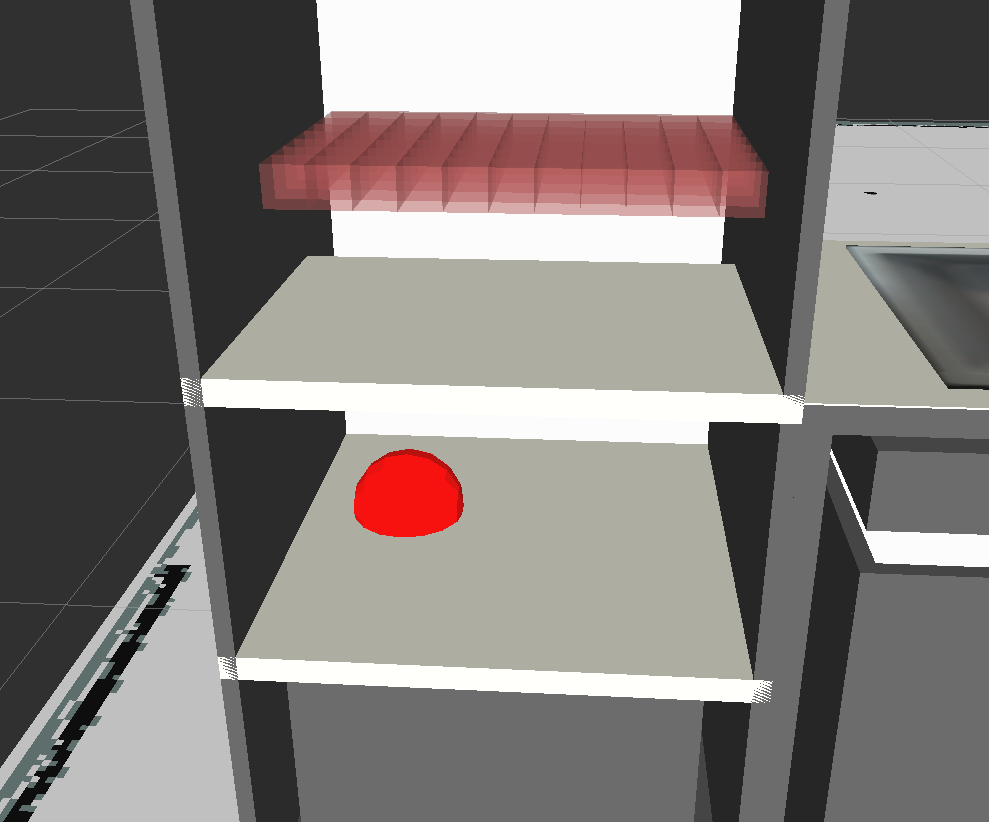

The big red dot is the location sampled for this designator.

If we want a location on a specific object, not on all objects of a certain type, we can specify that using the :name key:

SEMANTIC-MAP-COSTMAP> (reference (make-designator :location '((:on "Cupboard")
                                                              (:name "kitchen_island"))))
#<CL-TRANSFORMS-STAMPED:POSE-STAMPED
   FRAME-ID: "map", STAMP: 0.0
   #<3D-VECTOR (-0.6999998092651367d0 1.0500001907348633d0 0.8500000238418579d0)>
   #<QUATERNION (0.0d0 0.0d0 0.0d0 1.0d0)>>

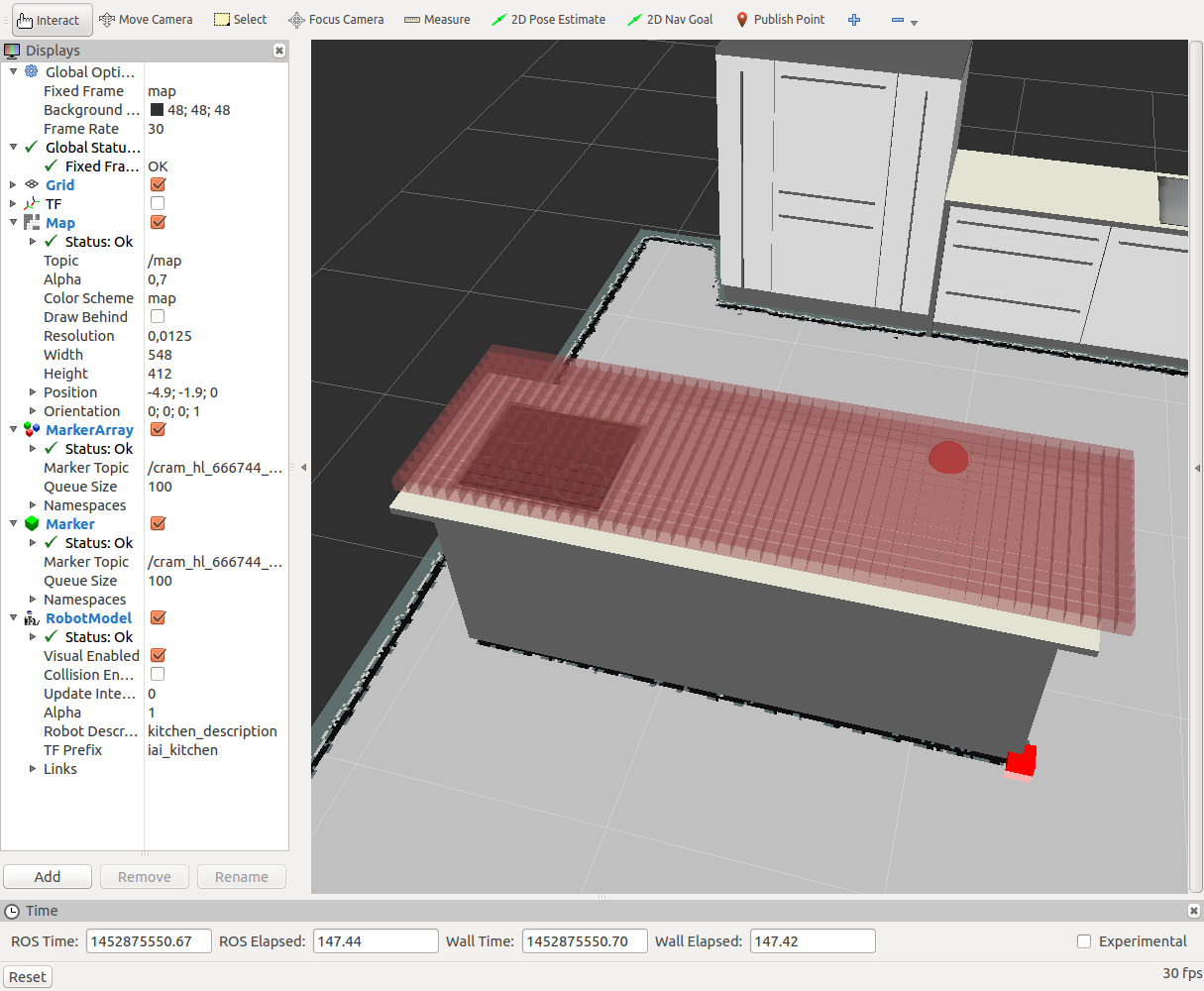

The marker array in RViz show a uniform distribution of all possible locations that satisfy the symbolic constraint in the designator.
